Cleanroom Steel Door for Pharmaceutical Facilities

Cleanroom Steel Door for Pharmaceutical and Controlled Environments

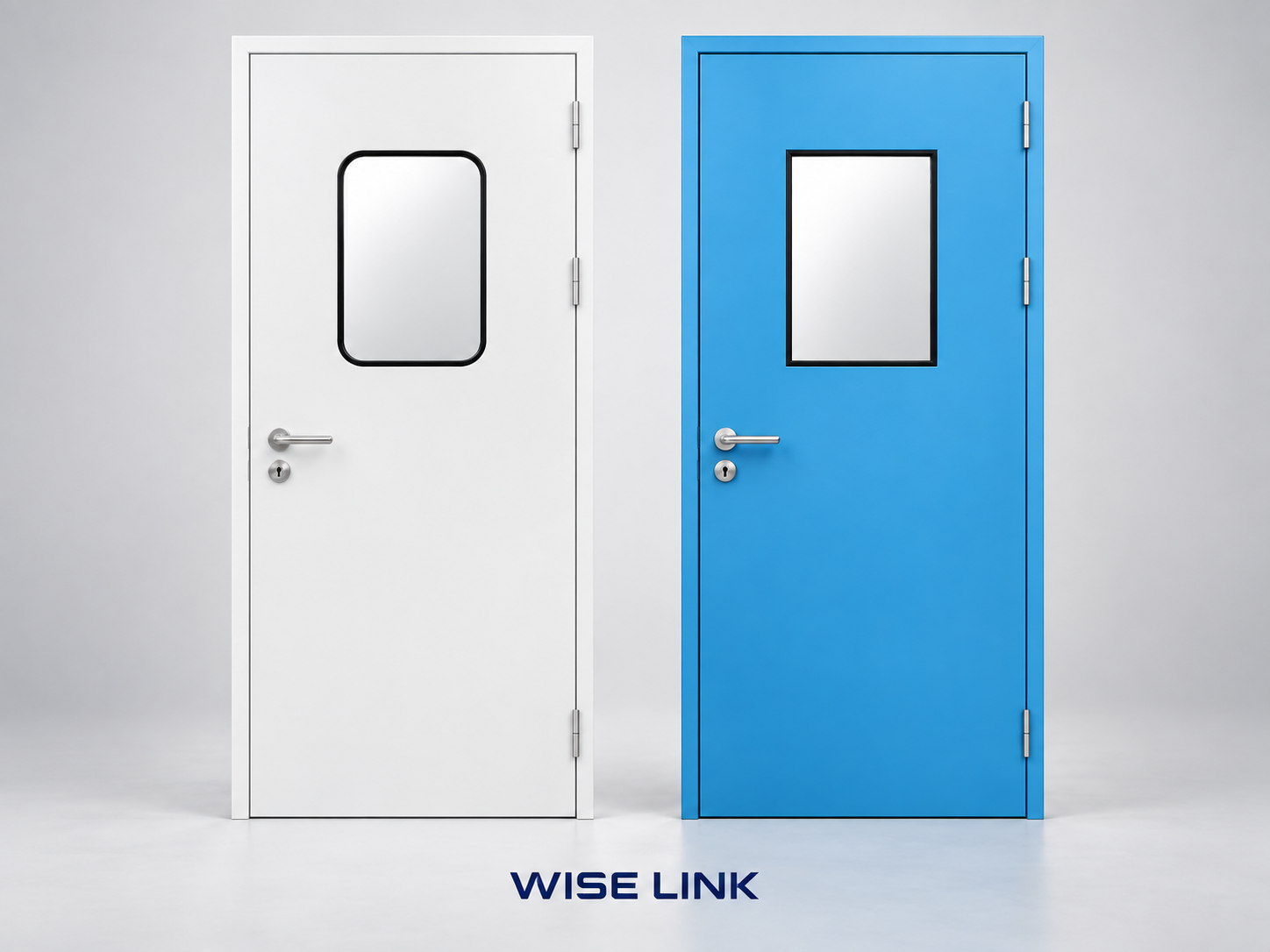

WISE LINK cleanroom steel doors are designed for pharmaceutical, biotechnology, healthcare, food processing and other controlled-environment facilities. They provide a practical access solution for cleanroom partitions, production rooms, airlocks, technical areas and personnel circulation routes.

The door system combines galvanized steel construction, a smooth coated surface, sealed edges and cleanroom-compatible hardware. Depending on the project requirements, the door can be supplied as a single-leaf or double-leaf configuration, with optional vision panels, electronic interlocks and automatic bottom seals.

A cleanroom door should not be selected by size alone. The final configuration depends on the wall panel system, room pressure relationship, traffic frequency, cleaning method, fire strategy, access-control requirements and installation conditions. WISE LINK can coordinate the door with cleanroom sandwich panels, doors, windows, aluminium profiles and other enclosure components.

Key Features of the Steel Cleanroom Door

• Galvanized steel door frame and door leaf construction
• Smooth electrostatic powder-coated surface for easier cleaning

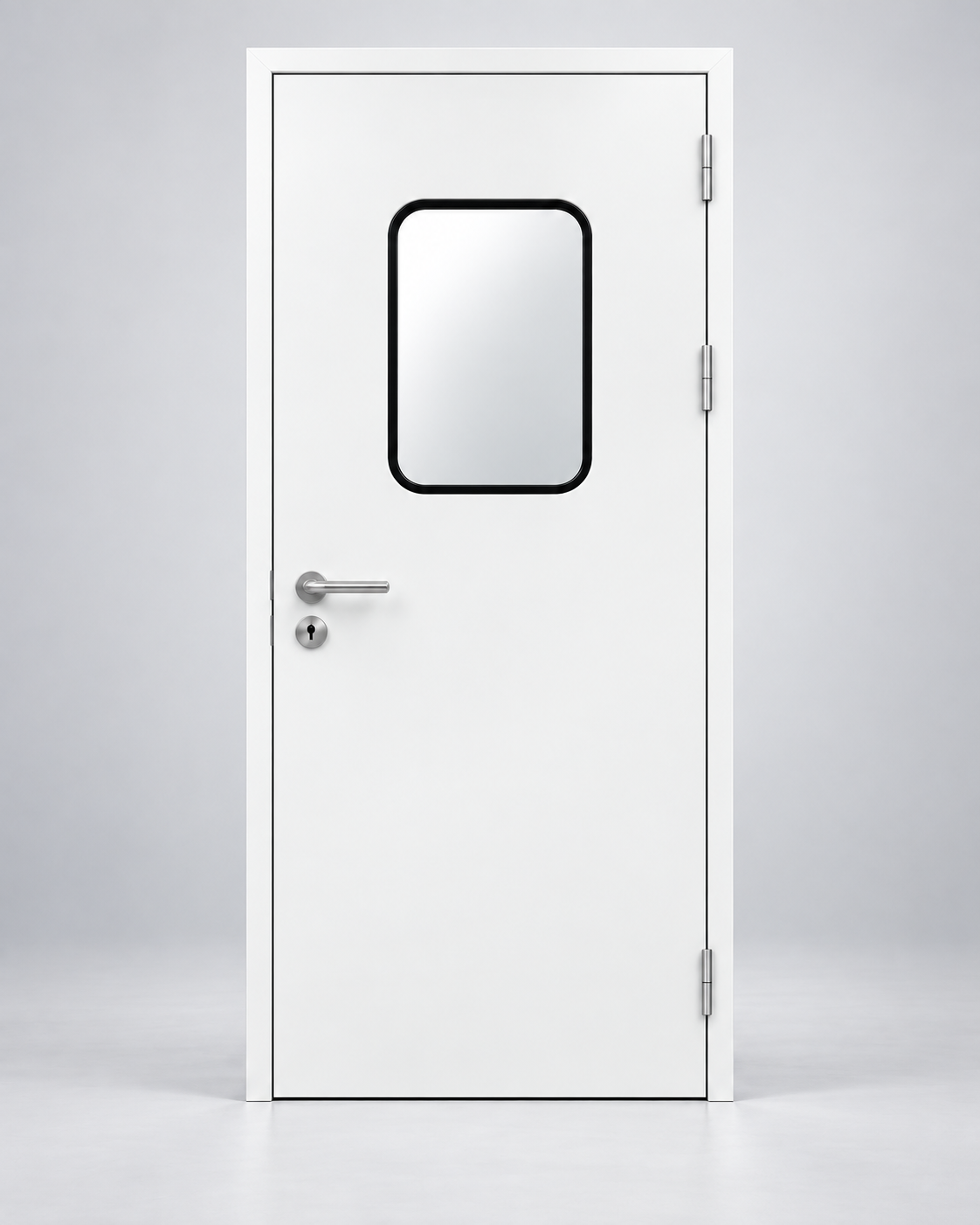

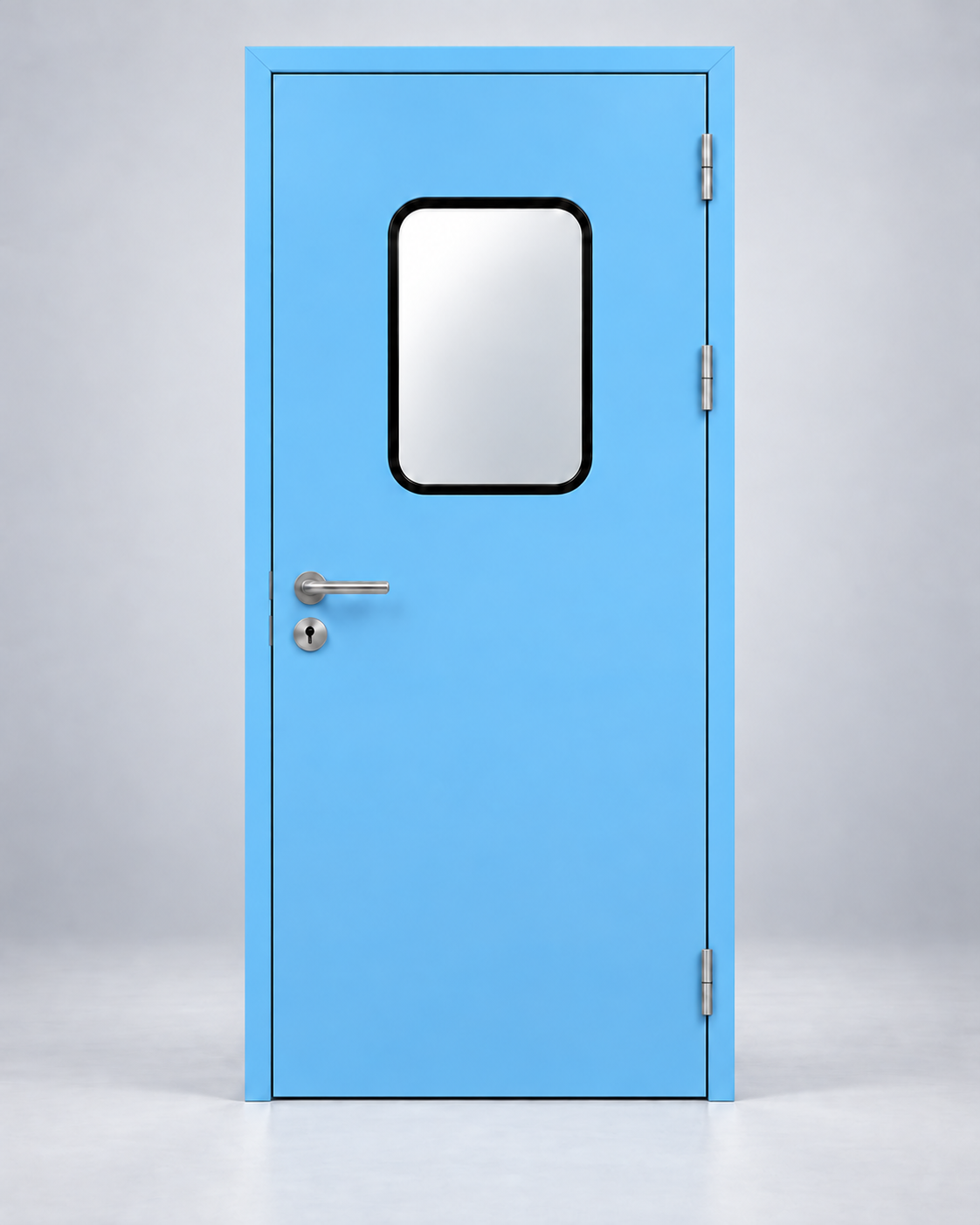

• Single and double cleanroom door configurations
• Optional double glazing or frosted glass vision panels
• Rounded-corner or square corner window designs
• 304 stainless steel hinges and hardware options
• 304 stainless steel handle lock or elbow pressure ball lock
• Optional electronic interlock system for airlocks
• Optional automatic bottom sealing strip
• Customizable dimensions, colours, hardware and opening direction


  Cleanroom Steel Door Specifications

• Specification	Available Options
  Single open door size	750-1000 × 2100 mm/customized
  Double open door size	1200 -1800 × 2100 mm/customized
  Door frame	Color Powder coated GI sheet  Tck 1.2-1.5mm
  Door leaf	PCGI/PPGI sheet Tck 0.8 mm/1.0 mm/1.2 mm
  Infilled with	Rockwool/Honeycomb/other
  View panel	Double layer hollow glass
  View panel shape	Round corner or square corner
  Push/Pull plate	as request
  Kick plate	as request
  Lock	304 stainless steel handle lock or ball lock
  Interlock	2 doors/3 doors/other as request
  Lock brand	Wiselink/GEZE/OEM
  Hinges	3pcs 304 stainless steel hinges
  Door seal strip	automatic drop seal strip
  Colour	follow design



  Applications

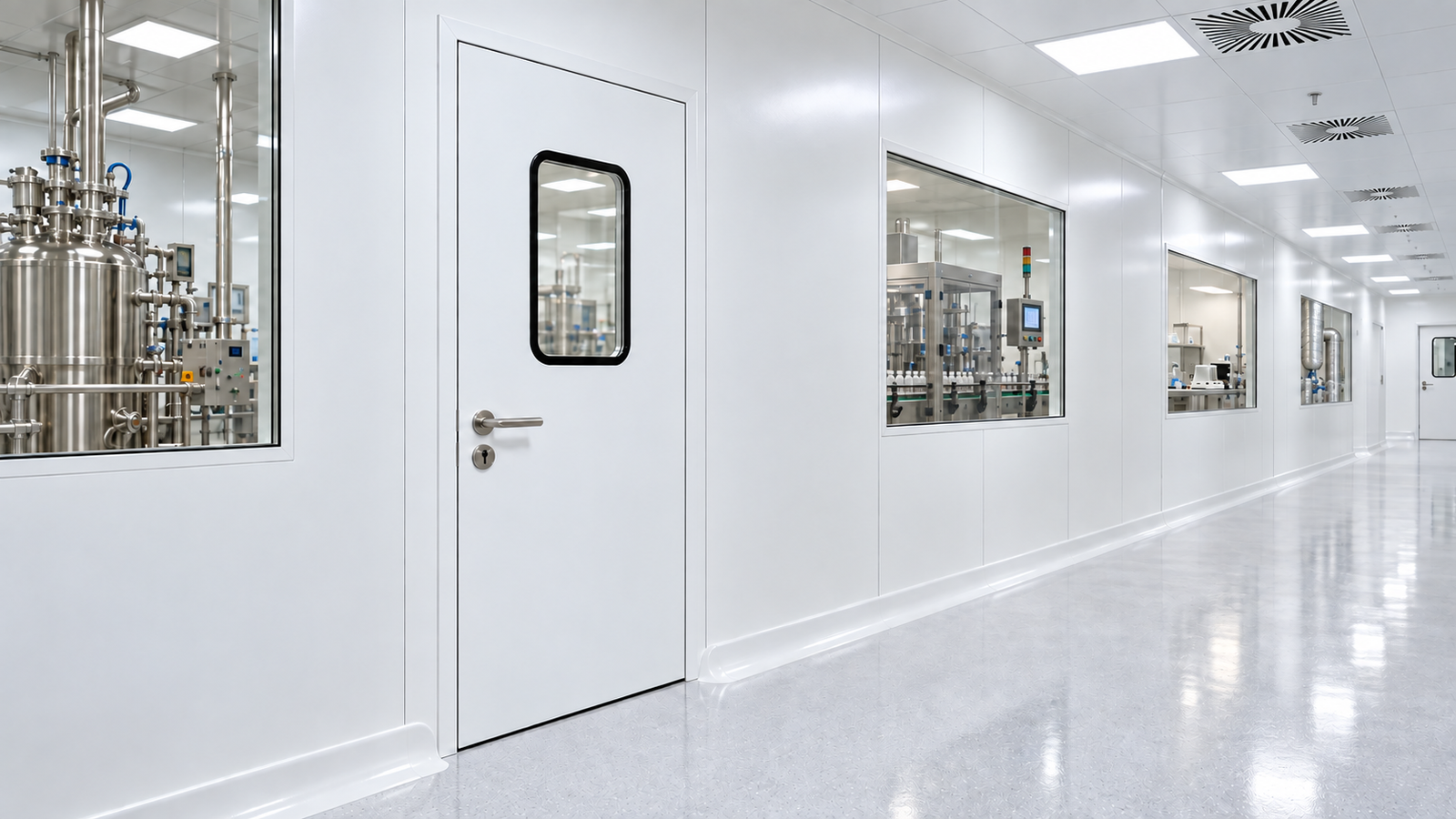

  Cleanroom steel doors are commonly used in:

  • Pharmaceutical manufacturing rooms
  • Biotechnology and laboratory facilities
  • Hospital and healthcare cleanrooms
  • Food and beverage processing areas
  • Medical device production rooms
  • Material and personnel airlocks
  • Sampling, packaging and gowning rooms
  • Utility and technical areas

  For facilities with pressure-controlled rooms, the door leaf, frame, gasket and bottom seal should be coordinated with the wall system and room pressure design. For airlocks, an electronic interlock can help prevent two doors from opening at the same time, subject to the approved control system.

  Project-Based Customization

  WISE LINK supplies cleanroom steel doors according to project drawings, wall panel thickness, opening dimensions and access requirements. Before quotation, please provide the required door quantity, single or double configuration, opening size, wall thickness, vision panel requirement, hardware preference, colour and installation scope.

  Technical drawings, hardware schedules, material details and project documentation can be provided during the RFQ and project confirmation stage.

  Request a quotation for your cleanroom steel door project today.
